High-Performance Hydraulic Piston Seals for Reliable Bidirectional Sealing
In modern hydraulic systems, sealing performance directly affects equipment efficiency, operating safety, and maintenance costs. A poorly designed piston seal can lead to fluid leakage, pressure loss, increased downtime, and premature equipment failure.
Xiamen Jinshun Sealing Technology Co., Ltd. manufactures high-performance Double-Acting Piston Seals designed for demanding hydraulic cylinder applications where pressure can be applied from both directions.

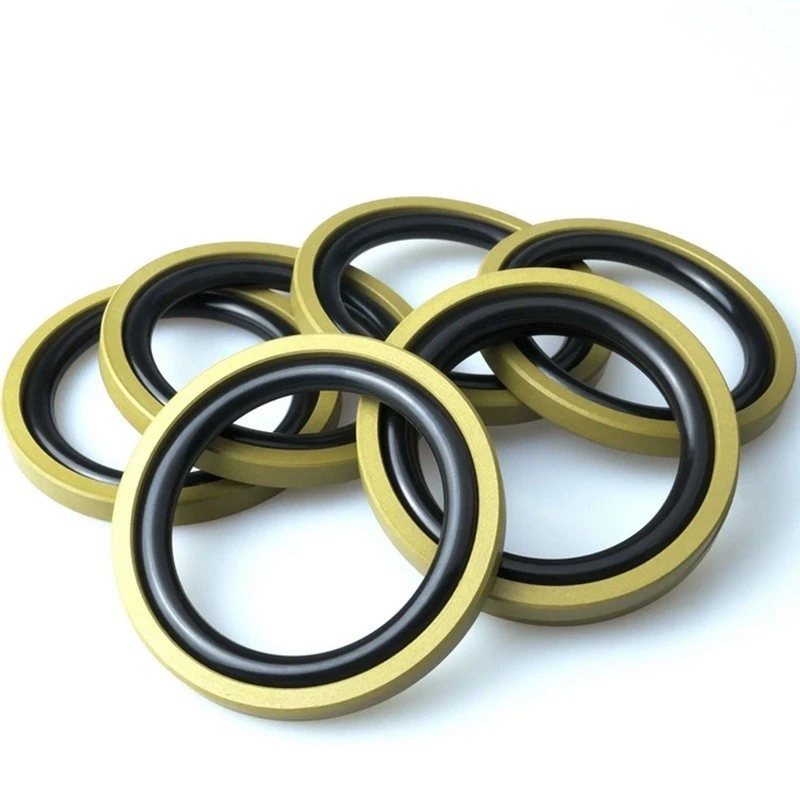

Our double-acting piston seal combines a wear-resistant PTFE sealing ring with an elastomer O-ring energizer. This design delivers excellent sealing performance, low friction, outstanding wear resistance, and long-term reliability under high-pressure operating conditions.
Since 2002, Jinshun Sealing has been supplying precision-engineered hydraulic sealing solutions to customers worldwide, serving industries such as construction machinery, industrial hydraulics, mining equipment, energy systems, agricultural machinery, and automation equipment.
What Is a Double-Acting Piston Seal?
A double-acting piston seal is a hydraulic sealing element designed to seal pressure from both sides of a piston.
Unlike single-acting seals that seal pressure in only one direction, double-acting hydraulic piston seals maintain sealing integrity regardless of pressure direction changes.

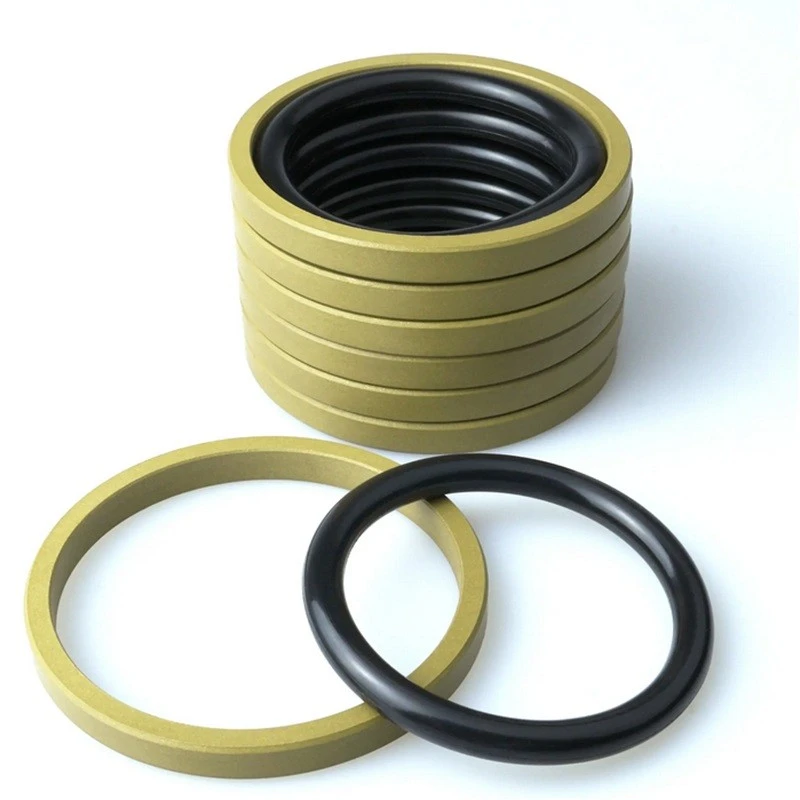

The seal typically consists of:
- PTFE wear ring (main sealing element)
- Elastic O-ring energizer
- Guide ring support (optional)
The O-ring continuously applies radial force to the PTFE sealing ring, compensating for wear over time and maintaining a tight seal throughout the product lifecycle.
This design provides reliable sealing during both extension and retraction strokes of hydraulic cylinders.

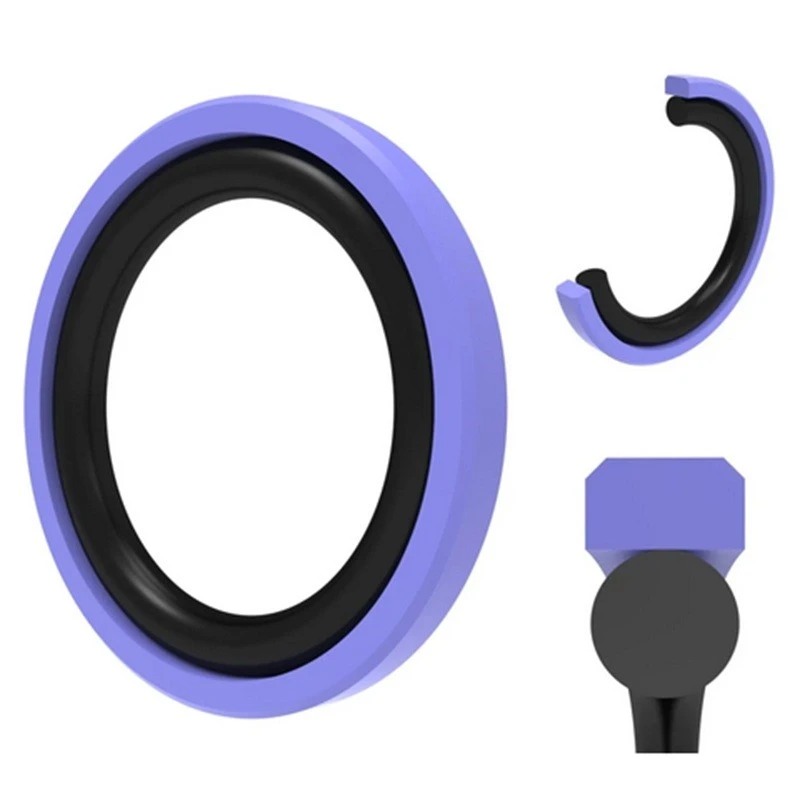

Double-Acting Piston Seal Structure
| Component | Material |
|---|---|
| Sealing Ring | PTFE Bronze Filled Composite |
| Energizer Ring | NBR (Standard) |
| Optional Energizer | FKM (Viton®) |
| Guide Ring | PTFE, POM, Fabric Reinforced Phenolic |
| Housing | Hydraulic Cylinder Groove |
The combination of PTFE and elastomer energizers creates a sealing system that offers both flexibility and durability.
Key Advantages of Jinshun Double-Acting Piston Seals
Excellent Bidirectional Sealing Performance
Our seals provide consistent sealing performance regardless of pressure direction, making them ideal for reciprocating hydraulic cylinders.
High Pressure Resistance
Designed for demanding hydraulic systems with operating pressures up to:
40 MPa (400 bar)
This makes them suitable for heavy-duty industrial equipment and mobile hydraulics.
Outstanding Wear Resistance
The PTFE bronze-filled sealing ring delivers exceptional abrasion resistance, reducing maintenance intervals and extending service life.
Low Friction and No Stick-Slip Effect
The low coefficient of friction minimizes energy loss and eliminates stick-slip motion, resulting in smoother cylinder operation and improved positioning accuracy.
Superior Extrusion Resistance
The reinforced PTFE structure prevents seal extrusion even under high-pressure shock loads and fluctuating operating conditions.
Excellent Heat Dissipation
PTFE offers high thermal conductivity compared to conventional elastomer seals, helping maintain sealing stability during continuous operation.
Technical Specifications
Operating Parameters
| Parameter | Value |
|---|---|
| Seal Type | Double-Acting Piston Seal |
| Working Pressure | ≤ 40 MPa |
| Maximum Pressure | 400 Bar |
| Operating Speed | ≤ 5 m/s |
| Operating Frequency | ≤ 5 Hz |
| Temperature Range (NBR) | -30°C to +100°C |
| Temperature Range (FKM) | -20°C to +200°C |
| Media Compatibility | Hydraulic Oil, Mineral Oil, Industrial Fluids |
| Installation Type | Closed Groove |
| Recommended Support | Guide Rings |
Material Performance Comparison
| Property | PTFE + NBR | PTFE + FKM |
|---|---|---|
| Oil Resistance | Excellent | Excellent |
| High Temperature Resistance | Good | Excellent |
| Chemical Resistance | Good | Excellent |
| Wear Resistance | Excellent | Excellent |
| Compression Set Resistance | Good | Excellent |
| Service Life | Long | Extended |
| Cost Efficiency | High | Premium |
For applications involving elevated temperatures or aggressive chemicals, FKM-energized piston seals are often the preferred solution.
Typical Applications
Hydraulic Cylinders
Widely used in:
- Excavators
- Loaders
- Cranes
- Bulldozers
- Forklifts
- Hydraulic presses
Industrial Automation Equipment
Suitable for:
- Servo hydraulic systems
- Precision machinery
- Robotics
- Manufacturing equipment
Mining Equipment
Engineered to perform reliably in dusty, abrasive, and high-load environments.
Agricultural Machinery
Used in:
- Tractors
- Harvesters
- Sprayers
- Hydraulic lifting systems
Marine and Offshore Equipment
Provides stable sealing performance under demanding operating conditions.
Why PTFE Double-Acting Piston Seals Outperform Traditional Rubber Seals
Traditional elastomer piston seals often struggle under high pressure and high-speed conditions.
PTFE-based piston seals provide:
- Lower friction
- Reduced heat generation
- Better dimensional stability
- Higher wear resistance
- Longer maintenance intervals
- Improved hydraulic efficiency
For OEM hydraulic cylinder manufacturers and industrial equipment builders, these benefits translate directly into lower lifecycle costs and improved equipment reliability.
Custom Double-Acting Piston Seal Solutions
Every hydraulic system has unique operating requirements.
Jinshun Sealing provides complete OEM and ODM manufacturing services, including:
Custom Dimensions
- Metric sizes
- Inch sizes
- Non-standard dimensions
Material Selection
- PTFE Bronze Filled
- Virgin PTFE
- Carbon Filled PTFE
- Glass Filled PTFE
O-Ring Material Options
- NBR
- FKM (Viton®)
- EPDM
- Silicone
Application Engineering Support
Our engineers assist customers in selecting the optimal sealing solution based on:
- Pressure
- Speed
- Temperature
- Fluid compatibility
- Installation space
Why Choose Xiamen Jinshun Sealing?
More Than 20 Years of Manufacturing Experience
Established in 2002, Jinshun has become a trusted supplier of precision sealing products for global industries.
Certified Manufacturing System
- ISO 9001:2015
- ISO 14001:2015
Advanced Material Expertise
We specialize in:
- PTFE seals
- Hydraulic seals
- O-rings
- Y-seals
- Custom rubber molded parts
Strict Quality Control
All raw materials comply with:
- RoHS
- REACH
- PAHS
Many materials can meet:
- FDA
- NSF
- WRAS
- ACS
- LFGB
OEM & ODM Manufacturing
From engineering design to mass production, we provide complete custom sealing solutions for international equipment manufacturers.
Frequently Asked Questions (FAQs)
What is the difference between a single-acting and double-acting piston seal?
A single-acting seal works in one pressure direction, while a double-acting piston seal provides sealing performance in both directions of pressure.
What materials are used in double-acting piston seals?
Most designs use a PTFE sealing ring combined with an NBR or FKM O-ring energizer.
What pressure can a double-acting piston seal withstand?
Jinshun double-acting piston seals can operate at pressures up to 40 MPa (400 bar).
Why is PTFE used in hydraulic piston seals?
PTFE offers low friction, excellent wear resistance, high chemical resistance, and superior extrusion resistance.
Can you manufacture custom piston seals?
Yes. We offer OEM and ODM manufacturing services based on customer drawings, specifications, or samples.
Which industries commonly use double-acting piston seals?
Hydraulic cylinders, construction equipment, industrial automation systems, mining machinery, agricultural equipment, and energy applications.
Request a Quote for Double-Acting Piston Seals
Looking for a reliable Double-Acting Piston Seal manufacturer in China?
Xiamen Jinshun Sealing Technology Co., Ltd. provides high-performance hydraulic sealing solutions trusted by OEM manufacturers, hydraulic cylinder producers, industrial equipment builders, and global distributors.
Why Global Buyers Choose Jinshun
✓ PTFE Bronze Filled High-Wear Materials
✓ Pressure Resistance Up to 40 MPa
✓ Low Friction Design
✓ Custom Sizes and Materials
✓ OEM & ODM Manufacturing
✓ Fast Sampling and Tooling
✓ Competitive Factory Pricing
✓ Global Export Experience Since 2002
Contact our sealing engineers today for technical support, free consultation, samples, or a customized quotation for your hydraulic sealing project.
