O-Ring Groove Design Guide: How to Design Reliable Grooves for Custom O-Ring Seals
[2026-01-17] | By Xiamen Jinshun Sealing Technology Co., Ltd. Annie Xu
Introduction
A high-quality O-ring alone does not guarantee a good seal. In real applications, O-ring groove design plays an equally critical role. Even the best custom O-ring seals will fail if the groove dimensions, compression rate, or surface finish are not properly designed.
This guide explains how O-ring grooves are designed, the differences between static and dynamic sealing, and how groove width, depth, and radii directly affect sealing performance and service life. The content is based on real manufacturing and application experience from Xiamen Jinshun Sealing Technology Co., Ltd., a China-based custom O-ring manufacturer and exporter serving OEM and industrial buyers worldwide.
Table of Contents
- Why O-Ring Groove Design Matters
- Basic Principles of O-Ring Groove Design
- Radial vs. Axial O-Ring Groove Design
- Groove Width Design Guidelines
- Groove Depth and Compression Ratio
- Corner Radius and Chamfer Design
- When and Why to Use Backup Rings
- Standard O-Ring Groove Dimensions (Tables)
- Static vs. Dynamic Sealing Explained
- Common Sealing Applications
- FAQs
- Call to Action
In most sealing failures, the problem is not the O-ring material, but the groove. Poor groove design can cause:
- Excessive friction
- Rapid wear
- O-ring extrusion
- Leakage under pressure
For OEM projects using custom O-ring seals, groove design must balance sealing performance, ease of installation, and long-term reliability.
A well-designed groove should meet three basic requirements:
- Easy to machine and inspect
- Accurate dimensions with stable tolerances
- Easy O-ring installation and replacement
In dynamic applications, designers must also consider clearance between moving parts, heat generation, and material expansion.
O-ring grooves are mainly divided based on compression direction.
Radial Sealing (Most Common)
Radial grooves are typically used in dynamic applications, such as:
- Piston seals
- Rod seals
- Rotary seals
The O-ring is compressed perpendicular to the axis of movement.
Axial Sealing
Axial grooves are mostly used for static sealing, including:
- Flange face seals
- End covers
- Hydraulic fittings
The O-ring is compressed parallel to the axis.
Groove width directly affects friction and wear.
Key Design Rules
- Groove width must be larger than the O-ring's maximum compressed diameter
- Expansion caused by heat or media swelling must be considered
- In dynamic sealing, the O-ring must be able to roll freely in the groove
Best practice:
The O-ring cross-sectional area should occupy no more than 85% of the groove area.
| Groove Width Condition | Risk |
|---|---|
| Too narrow | High friction, severe wear |
| Too wide | Excessive movement, early failure |

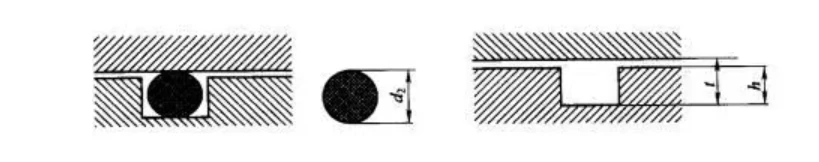

Groove depth controls how much the O-ring is compressed, known as the compression ratio.
Compression Ratio Formula
X = (d₂ − t) / d₂ × 100%
Where:
- d₂ = O-ring cross-section diameter (free state)
- t = compressed height after installation
Recommended Compression Ratios
| Application Type | Compression Ratio |
|---|---|
| Static (cylindrical) | 10% – 15% |
| Static (flat surface) | 15% – 30% |
| Hydraulic dynamic | 12% – 20% |
| Pneumatic dynamic | 5% – 6% |
Higher pressure systems require slightly higher compression.
Groove Bottom Radius
The groove bottom radius reduces stress concentration and prevents extrusion.
Recommended value:
- 0.2 – 1.2 mm (depending on O-ring size)
Groove Edge Radius (Chamfer)
This prevents O-ring damage during installation.
Recommended value:
0.1 – 0.3 mm
Oversized radii can reduce sealing efficiency, so balance is essential.
Backup rings prevent O-ring extrusion under high pressure.
Backup Ring Guidelines
- Single-direction pressure → one backup ring
- Bi-directional pressure → two backup rings
- Static sealing below 32 MPa → backup ring usually not required
- Above 32 MPa → backup ring strongly recommended
Groove width should be increased slightly to accommodate the backup ring.
Radial Sealing Groove Dimensions (mm)
| O-Ring CS (d₂) | Groove Width (Hydraulic) | Groove Depth (Dynamic) | Bottom Radius r₁ |
|---|---|---|---|
| 1.80 | 2.4 | 1.35 | 0.2–0.4 |
| 2.65 | 3.6 | 2.10 | 0.4–0.8 |
| 3.55 | 4.8 | 2.85 | 0.8–1.2 |
| 5.30 | 7.1 | 4.35 | 0.8–1.2 |
| 7.00 | 9.5 | 5.85 | 0.8–1.2 |
Axial Sealing Groove Dimensions (mm)
| O-Ring CS (d₂) | Groove Width | Groove Depth | Bottom Radius r₁ |
|---|---|---|---|
| 1.80 | 2.6 | 1.28 | 0.2–0.4 |
| 2.65 | 3.8 | 1.97 | 0.4–0.8 |
| 3.55 | 5.0 | 2.75 | 0.8–1.2 |
| 5.30 | 7.3 | 4.24 | 0.8–1.2 |
| 7.00 | 9.7 | 5.72 | 0.8–1.2 |
9. Static vs. Dynamic Sealing Explained
| Type | Movement | Typical Use |
|---|---|---|
| Static sealing | No movement | Flanges, end covers |
| Dynamic sealing | Relative movement | Pistons, rods, shafts |
Dynamic sealing requires tighter groove control and lower friction.
- Flange gaskets: Axially compressed, static sealing
- Piston seals: Radial compression, dynamic sealing
- Rod seals: Radial compression with internal or external sealing effect
Each application demands a different groove design approach.
Q1: Can you help design grooves for custom O-ring seals?
Yes. Our engineers provide groove design recommendations based on pressure, media, and motion type.
Q2: Are these groove dimensions standardized?
They are industry-recognized guidelines. Final dimensions should be adjusted for material and application.
Q3: What materials work best for dynamic grooves?
NBR and FKM are commonly used, depending on temperature and media.
Q4: Do you support non-standard groove designs?
Absolutely. Custom groove solutions are available for special applications.
Designing the right groove is just as important as choosing the right seal.
If you are working on a project involving custom O-ring seals or need support with O-ring groove design, our engineering team is ready to help.
Contact Xiamen Jinshun Sealing Technology Co., Ltd. today to get technical advice, drawings review, and fast OEM quotations.
