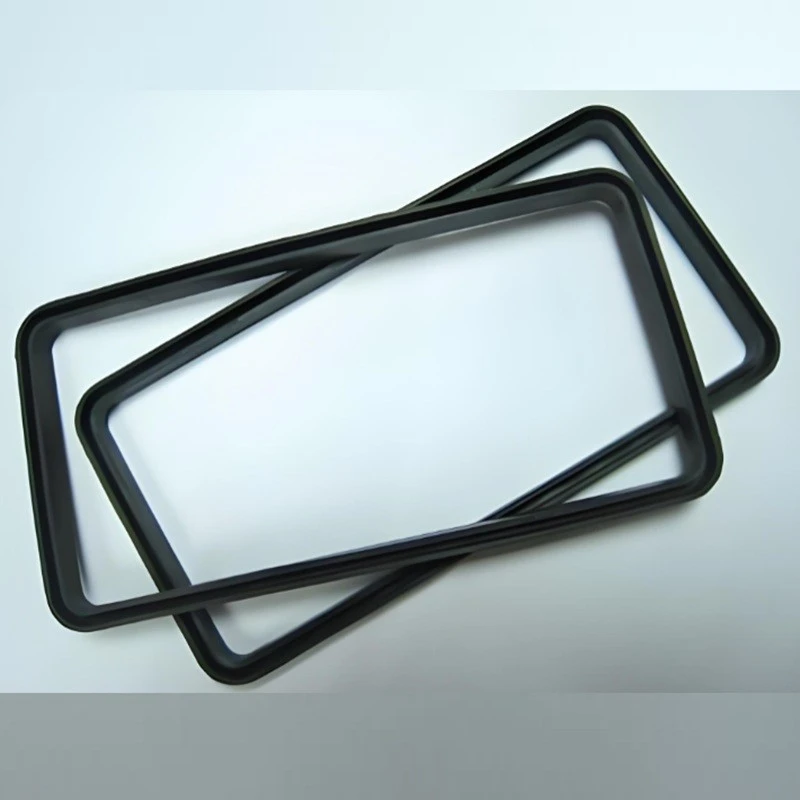

Custom Molded Gaskets

When a standard gasket does not fit, does not seal properly, or cannot handle your operating conditions, a custom molded gasket is usually the better solution.

Xiamen Jinshun Sealing Technology Co., Ltd. has been manufacturing custom rubber sealing products since 2002. We develop and produce custom molded gaskets, rubber O-rings, Y-seals, silicone gaskets, RO membrane seals, silicone tubes, and other molded rubber components for customers in different industries.

Our approach is straightforward: understand your application first, then select the right rubber compound, geometry, molding process, and production method.

Whether you need a small prototype run or a high-volume OEM program, we can manufacture molded rubber gaskets according to your drawings, samples, dimensions, and performance requirements.

Our manufacturing and quality systems are certified to ISO 9001:2015 and ISO 14001:2015. Depending on the application, we can also work with materials and products meeting requirements such as RoHS, REACH, PAHS, NSF, FDA, LFGB, ACS, KTW-W270, WRAS, and UL.

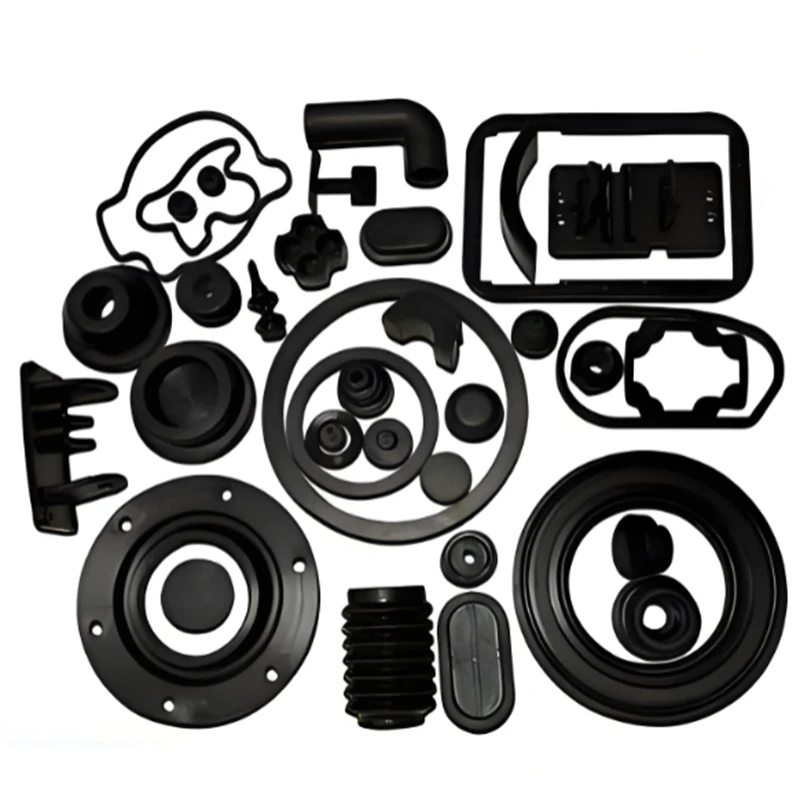

Custom molded gaskets are rubber sealing components formed inside a precision mold rather than simply cut from sheet material.

The rubber compound is placed or injected into the mold and cured under controlled temperature and pressure. This allows manufacturers to create complex profiles, holes, grooves, lips, corners, and three-dimensional sealing features that may be difficult or impossible to produce with conventional die-cutting.

The result is a gasket designed around the actual mating surfaces and operating conditions of your equipment.

Typical custom gasket requirements include:

• Custom outside and inside dimensions
• Non-standard shapes and profiles
• Different thicknesses
• Special holes and mounting features
• Tight dimensional tolerances
• Specific Shore A hardness
• High-temperature or low-temperature resistance
• Oil, water, chemical, ozone, or weather resistance
• Food-contact or drinking-water applications
• Rubber-to-metal bonding
• OEM and private-label production

For international buyers, this means you do not have to redesign your equipment around an off-the-shelf gasket. The gasket can be designed around your equipment.

Because these are made-to-order sealing components, specifications depend on the application rather than one fixed product size.

Note: Final material, hardness, tolerance, temperature range, chemical compatibility, and certification requirements should be confirmed against the actual application before production.

1. A Precise Fit for Your Assembly

A gasket that is slightly too large, too small, too hard, or incorrectly shaped can create unnecessary sealing problems.

With a custom molded gasket, the geometry is developed around your actual sealing interface. We can manufacture profiles with mounting holes, locating features, grooves, corners, and other application-specific details.

This is particularly useful when the mating surfaces have a complex or non-standard shape.

2. Better Control Over Sealing Performance

The right gasket is more than a piece of rubber between two components.

Material hardness, compression, profile geometry, surface condition, temperature, pressure, and chemical exposure all affect sealing performance.

Our engineers can help evaluate these factors before production so that the selected rubber compound and gasket design match the working environment.

3. Multiple Rubber Materials

Different applications need different elastomers. There is no single rubber compound that is ideal for every sealing job.

Material selection should always be based on the actual media, temperature, pressure, compression, movement, and service environment.

Jinshun can select different rubber molding processes according to part geometry, material, tooling requirements, production volume, and target cost.

Compression Molding

Compression molding is a practical choice for many custom rubber gasket designs.

A measured amount of rubber compound is placed into the mold cavity. The mold closes, and heat and pressure cure the material into the required shape.

Advantages include:

• Suitable for many custom gasket designs
• Relatively straightforward tooling
• Suitable for low-to-medium production volumes
• Can be economical for larger rubber components
• Flexible for different rubber compounds

For buyers developing a new product, compression molding can be a practical way to balance tooling investment and production cost.

Transfer Molding

Transfer molding places the rubber compound into a transfer chamber before forcing it into the mold cavities.

Compared with conventional compression molding, it can provide better control for certain more complicated geometries and is particularly useful for rubber-to-metal molded components.

It can be considered when your gasket includes inserts or requires more controlled material distribution.

Injection Molding

Rubber injection molding is well suited to higher-volume production where repeatability and cycle efficiency are important.

The rubber compound is injected into the mold cavity under controlled conditions and then cured.

Injection molding can be a good option when you need:

• High-volume production
• Consistent part-to-part dimensions
• Complex molded geometry
• Efficient production cycles
• Reduced manual finishing
• Repeatable OEM production

The most suitable process depends on the gasket design, compound, annual volume, tooling budget, and tolerance requirements.

A reliable custom rubber gasket program starts before the first production run.

Step 1: Review Your Requirements

Send us your:

• 2D drawing
• 3D CAD file
• Existing gasket sample
• Dimensions
• Material requirements
• Hardness requirements
• Application information
• Estimated annual quantity
• Required certifications

If you do not have a complete drawing, a physical sample or basic dimensions can still provide a starting point for discussion.

Step 2: Material and Design Evaluation

We review the gasket geometry and working environment and help determine a suitable rubber compound and hardness.

For example, an EPDM gasket may be a strong candidate for hot water and outdoor exposure, while NBR may be more appropriate for many oil-contact applications. FKM can be considered when higher temperature or chemical resistance is required.

Step 3: Prototype and Tooling

After the design is confirmed, tooling can be developed for the required production method.

For new products, prototype development allows buyers to verify fit and sealing performance before committing to larger production quantities.

Step 4: Molded Gasket Production

Once the tooling and specifications are approved, the parts are molded using the agreed production process.

Production parameters are controlled to maintain consistent part quality across batches.

Step 5: Quality Inspection

Finished molded rubber gaskets can be inspected against the agreed specifications, including dimensional requirements and material-related requirements.

For OEM projects, quality documentation and inspection requirements can be discussed before mass production.

Send Your Drawing or Sample

Jinshun supplies custom rubber sealing components for a broad range of applications.

Automotive

Custom molded gaskets can be used in:

• Automotive components
• Engine-related assemblies
• Fluid systems
• Electrical and electronic components
• Sealing housings
• General vehicle applications

Electronics and Electrical Equipment

Custom rubber gaskets help protect components from moisture, dust, vibration, and environmental exposure.

Applications can include:

• Electronic housings
• Connectors
• Control equipment
• Electrical enclosures
• Battery-related components

Food and Beverage

For food and drinking-water applications, the rubber compound and finished product need to meet the relevant regulatory requirements.

Jinshun works with materials and products for applications where certifications such as FDA, NSF, LFGB, ACS, KTW-W270, or WRAS may be required, subject to the specific material and product configuration.

Medical and Healthcare Equipment

Silicone and other specialized elastomers can be used for selected medical and equipment sealing applications where flexibility, cleanliness, and material compatibility are important.

HVAC and Construction

EPDM and other weather-resistant rubber compounds are commonly considered for applications exposed to water, outdoor conditions, temperature changes, and ozone.

Industrial Equipment

Custom molded rubber gaskets can be designed for pumps, valves, machinery, equipment housings, fluid systems, and other industrial assemblies.

For OEM buyers, the gasket is often a small component with a big responsibility.

A poor fit can result in leakage, assembly problems, product returns, or unnecessary maintenance. That is why Jinshun works with customers from the design and material selection stage through tooling, prototyping, production, and quality control.

We support:

• OEM custom rubber gasket manufacturing
• ODM rubber sealing components
• Custom molded rubber parts
• Prototype development
• Tool and mold development
• Small-batch production
• Mass production
• Custom colors and hardness
• Material selection
• Rubber-to-metal molded parts
• International bulk orders

Our goal is not simply to manufacture the rubber part. It is to help you arrive at a sealing component that makes sense for the complete product.

Xiamen Jinshun Sealing Technology Co., Ltd. was established in 2002 and has developed extensive experience in rubber sealing product manufacturing.

Our quality and environmental management systems are certified to:

• ISO 9001:2015
• ISO 14001:2015

Our raw materials meet applicable RoHS, REACH, and PAHS requirements, while selected products have approvals or certifications including NSF, FDA, LFGB, ACS, KTW-W270, WRAS, and UL, depending on the exact product and material.

We manufacture products for industries including food and drinking water, sanitary and bathing products, electronics, electrical appliances, machinery, hardware, automotive components, and other industrial applications.

For overseas buyers, we can work from drawings, samples, specifications, or existing product requirements to develop a practical custom sealing solution.

To reduce back-and-forth during quotation, send as much of the following information as possible:

Even if you do not have all of this information, send us what you have. Our engineering team can review the project and identify what needs to be confirmed.

What are custom molded gaskets?

Custom molded gaskets are rubber sealing components manufactured in a mold according to a specific shape, size, material, and application requirement. They are useful when standard gaskets cannot provide the required fit or sealing performance.

What materials can be used for molded rubber gaskets?

Common options include NBR, EPDM, silicone, FKM/Viton®, SBR, neoprene, and butyl rubber. The correct material depends on factors such as temperature, pressure, fluid or gas exposure, compression, and environmental conditions.

What is the difference between molded and die-cut gaskets?

Die-cut gaskets are generally cut from rubber sheet material, while molded gaskets are formed and cured inside a mold. Molded rubber gaskets are particularly useful for complex three-dimensional profiles, custom edges, locating features, and specialized geometries.

Can you manufacture custom gaskets from our drawing?

Yes. Jinshun can work from customer drawings, CAD files, specifications, or physical samples. The engineering team can review the design and determine suitable material and molding options.

Can you make small quantities of custom molded gaskets?

Custom tooling and production quantities depend on the gasket design and manufacturing process. Prototype and lower-volume projects can be discussed before moving to larger OEM production.

Can you manufacture food-grade or drinking-water gaskets?

Yes, selected rubber compounds and products can be supplied for food and drinking-water applications where applicable certifications are required. Available approvals may include FDA, NSF, LFGB, ACS, KTW-W270, or WRAS, depending on the specific material and product.

Which rubber is best for custom gaskets?

There is no universal "best" rubber. NBR is often considered for oil-related applications, EPDM for water and weather exposure, silicone for flexible and temperature-sensitive applications, and FKM for demanding temperature and chemical environments. The final choice should be based on the actual service conditions.

Can you make custom rubber gaskets in different colors?

Yes. Custom colors can be discussed according to the rubber compound, application, and production requirements.

Do you provide OEM and ODM rubber gasket manufacturing?

Yes. Jinshun supports custom OEM/ODM rubber sealing projects, including design review, material selection, tooling, prototyping, production, and quality control.

Request A Custom Molded Gasket Quote

Have a drawing, sample, or new product that needs a custom rubber gasket? Let Jinshun help you turn the sealing requirement into a production-ready component.

Send us your drawing, sample, dimensions, material requirements, application conditions, and estimated order quantity. Our team can review the project and recommend a suitable material and molding process.

Whether you are sourcing custom molded gaskets, molded rubber gaskets, custom rubber seals, OEM rubber gaskets, or other customized rubber components, we are ready to discuss your requirements.

Contact Xiamen Jinshun Sealing Technology Co., Ltd. today for a custom gasket quotation and OEM/ODM manufacturing solution.
