Silicone Hose FDA

Silicone Hose FDA: Product Overview

FDA silicone hose is used where the tube itself can contact food, beverages, drinking water, pharmaceutical fluids, or other controlled media. The supplied specification covers a working range of -40°C to +220°C, with strong flexibility, resistance to aging and cracking, and custom control of inner diameter, outer diameter, length, color, hardness, and shape. For regulated applications, the material grade and applicable FDA documentation must be matched to the actual fluid, temperature, cleaning cycle, and end-use conditions.

The main engineering value of silicone hose is its combination of temperature flexibility, chemical stability, elastic recovery, and clean internal surfaces. Silicone remains flexible at low temperatures while handling elevated temperatures that can occur in hot-water, steam-adjacent, beverage, coffee-machine, and sterilization-related equipment.

For food-contact applications, the material formulation must be selected according to the applicable regulatory requirement rather than simply calling the product "food grade." FDA compliance relates to the specific material formulation and its intended conditions of use. Jinshun Sealing manufactures silicone tubing for food, beverage, water filtration, pharmaceutical, medical, cosmetic, and appliance applications, with material options documented according to project requirements.

The hose can be supplied as straight tubing or developed into application-specific geometries such as elbows and molded sections. ID and OD are controlled according to the required flow rate, fitting interface, wall thickness, pressure conditions, and available installation space.

For OEM programs, Jinshun can work from a drawing, physical sample, dimensional specification, or application requirement. Available customization includes inner diameter, outer diameter, wall thickness, length, color, hardness, surface finish, shape, and packaging format.

Recommended Engineering Input Before Quotation

Custom Silicone Hose FDA

The following specifications consolidate the supplied product information with the current Jinshun silicone tubing range. Exact limits depend on the selected compound, hose construction, dimensions and application conditions. Jinshun's current FDA silicone tubing listing specifies -60°C to +200°C, Shore A 30–90, and custom sizes and colors; other silicone hose grades on the site are listed at different temperature ranges.

Specification note: Temperature ratings should not be treated as a universal value for every silicone hose. A hose operating continuously at +200°C, for example, has a different service condition from one exposed intermittently to +220°C. The compound, wall thickness, pressure, fluid, sterilization cycle and fitting design all affect service life.

"FDA silicone hose" should not be treated as a material name by itself. The purchasing specification should identify the applicable FDA requirement, material formulation, intended contact medium and operating conditions.

For food-contact silicone tubing, Jinshun's current product information references FDA 21 CFR 177.2600, together with LFGB, RoHS and REACH options.

For an incoming quality inspection program, procurement and QA teams should request documentation covering:

• Material identification and grade.
• Applicable food-contact regulatory basis.
• Raw-material compliance documentation.
• Lot or batch traceability.
• Dimensional inspection records.
• Visual inspection requirements.
• Required sterilization compatibility.
• Any additional NSF, WRAS, KTW or other market-specific requirements.

The important point is simple: the compliance document must match the actual compound and intended application.

A silicone hose used for drinking-water equipment should not automatically be assumed suitable for pharmaceutical processing simply because both products are made from silicone. The required regulatory and biocompatibility documentation can differ.

Contact us to get the best quote now

Silicone is selected for applications where temperature cycling and flexibility are more demanding than ordinary thermoplastic tubing can tolerate.

The supplied product specification gives a range of -40°C to +220°C. Jinshun's current product range also includes FDA silicone tubing specified at -60°C to +200°C, while other silicone hose products are listed at up to +220°C.

The actual working limit should therefore be specified against the compound and duty cycle rather than using one generic silicone temperature number.

Typical Engineering Conditions

Silicone has good resistance to aging, ozone, weathering and temperature cycling. It is not, however, a universal chemical hose. Strong solvents, concentrated acids, bases, fuels and oils require a separate compatibility review before material approval.

Dimensional Control

For fluid-transfer tubing, ID affects flow area and fitting engagement, while OD determines the external interface with clamps, sleeves, fittings or equipment housings. Wall thickness affects flexibility, collapse resistance and pressure capability.

For this reason, a purchasing drawing should normally define:

• ID tolerance
• OD tolerance
• Wall thickness
• Length tolerance
• Ovality, where applicable
• Surface condition
• Color requirement
• Hardness
• Cutting method
• Packaging length

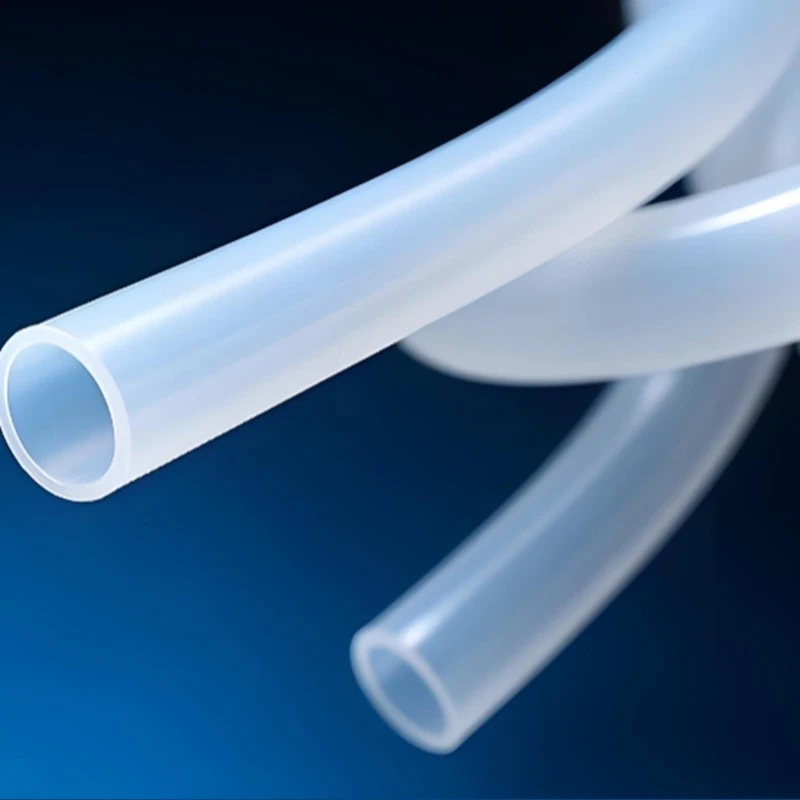

Straight Silicone Tubing

Straight extruded silicone tubing is suitable for water, beverage, laboratory, appliance and general fluid-transfer systems. Continuous production allows customers to specify fixed cut lengths or supply coils, depending on the assembly process.

Molded Silicone Hose

Where a straight tube cannot satisfy the routing requirement, molded elbows, bends and special geometries can reduce the number of joints in the final assembly.

This is particularly useful for:

• Coffee machines
• Water dispensers
• Filtration equipment
• Beverage machines
• Medical equipment
• Appliance assemblies
• Industrial fluid-transfer systems

Reinforced Silicone Hose

Where higher pressure or dimensional stability is required, reinforced structures can be considered. The reinforcement type, braid construction, wall thickness and working pressure must be specified together rather than evaluating the silicone layer alone.

Send the sample or 2D/3D drawing

Silicone hose quality is not determined only by appearance. For production procurement, dimensional consistency, material identification, surface quality and regulatory documentation all need to be controlled.

Jinshun Sealing operates under ISO 9001:2015 and ISO 14001:2015 quality and environmental management systems. The company's silicone product range includes material options associated with FDA, LFGB, NSF, WRAS, ACS, KTW-W270, RoHS, REACH and other requirements depending on the product grade.

Recommended Inspection Items

For medical and high-purity applications, Jinshun's current medical tubing range includes platinum-cured silicone options and references steam, EtO and gamma sterilization compatibility for applicable grades.

Food and Beverage Equipment

FDA silicone hose is commonly specified for fluid routing where the tubing can contact beverages, food ingredients or process water.

Typical equipment includes:

• Beverage dispensers
• Coffee machines
• Dairy equipment
• Brewery equipment
• Juice processing systems
• Food-processing machinery

Drinking Water and Filtration Systems

Silicone tubing is used in:

• RO water purifiers
• Water dispensers
• Drinking-water filtration equipment
• Commercial filtration systems
• Under-sink water systems
• Beverage water systems

Jinshun's current product range includes silicone hose for water dispensers with FDA, KTW and NSF certification options.

Pharmaceutical and Medical Equipment

Where a hose contacts controlled fluids, the compound, sterilization method and required regulatory documentation must be specified together.

Applications can include:

• Fluid-transfer assemblies
• Laboratory equipment
• Pharmaceutical processing
• Diagnostic equipment
• Peristaltic pump tubing
• Medical equipment

Household Appliances

Silicone hose can be integrated into:

• Coffee makers
• Ice machines
• Water filtration appliances
• Steam appliances
• Hot-water equipment
• Beverage machines

A good RFQ should contain enough engineering information to prevent repeated sampling.

Minimum RFQ Specification

The more precise the initial specification, the less time is lost between quotation, prototype, validation and mass production.

Xiamen Jinshun Sealing Technology Co., Ltd. has manufactured silicone and rubber sealing products since 2002. Its product range includes silicone hoses, silicone tubes, gaskets, O-rings and other molded or extruded silicone components. The factory supports OEM and custom production based on drawings, samples and application specifications.

For international procurement programs, the engineering review should start with the actual application rather than a generic product name. A purchasing request for "FDA silicone hose" should identify the required regulatory market, fluid, temperature, pressure, dimensions and annual volume.

That information determines the correct silicone formulation, hose structure, production method and inspection plan.

Medical Grade Silicone Tubing

Before placing a production order, confirm these eight points:

• Fluid: What exactly flows through the hose?
• Temperature: What are the minimum, normal and maximum temperatures?
• Pressure: What are the working and peak pressures?
• Dimensions: What are the required ID, OD and wall thickness?
• Regulation: FDA, LFGB, NSF, WRAS, KTW or another requirement?
• Sterilization: Is steam, EtO, gamma or another process used?
• Quantity: What is the monthly or annual demand?
• Documentation: Which inspection reports and compliance documents are required?

Getting these details right at the RFQ stage reduces the risk of selecting a hose that looks correct dimensionally but fails in the actual operating environment.

What temperature can FDA silicone hose withstand?

The supplied hose specification is -40°C to +220°C. Jinshun's current FDA silicone tubing listing specifies -60°C to +200°C. The applicable rating depends on the compound, wall thickness, pressure and duty cycle.

Can Jinshun manufacture custom FDA silicone hose from a drawing?

Yes. Custom ID, OD, wall thickness, length, hardness, color and shape are available. Customers can provide a 2D drawing, 3D CAD file, physical sample or dimensional specification for engineering review and quotation.

What FDA documentation should be requested for food-contact silicone hose?

The RFQ should identify the required FDA food-contact basis and intended conditions of use. Jinshun's food-grade silicone tubing range references FDA 21 CFR 177.2600, with LFGB, RoHS and REACH options.

Is FDA silicone hose suitable for drinking water systems?

It can be, provided the selected material and certification package meet the drinking-water requirements of the target market. Jinshun offers silicone hose grades with FDA, KTW and NSF options for water-dispenser and filtration applications.

Can silicone hose be supplied in different colors and hardness levels?

Yes. Jinshun's current FDA tubing range lists 30–90 Shore A hardness and transparent or Pantone/RAL custom colors. Exact hardness and color depend on the selected compound and production specification.

Request An FDA Silicone Hose Quote

Send your drawing, sample, ID/OD dimensions, wall thickness, fluid type, operating temperature, pressure, required certification and annual quantity to Xiamen Jinshun Sealing Technology Co., Ltd.

Our engineering team can review the specification, recommend a suitable silicone grade and production method, and prepare an OEM quotation for your project.

For custom FDA silicone hose, food-grade silicone tubing, drinking-water tubing or pharmaceutical fluid-transfer applications, contact Jinshun Sealing for factory-direct supply from Xiamen, China.
